Maintains a connection to the StatServer. More...

#include <StatClient.h>

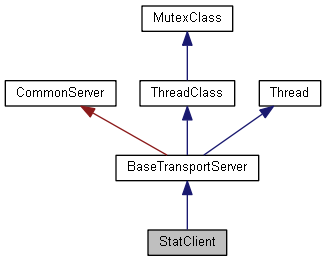

Inheritance diagram for StatClient:

[legend]

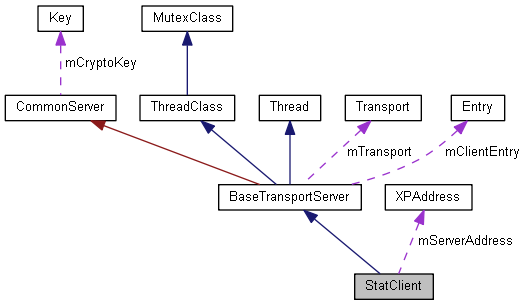

Collaboration diagram for StatClient:

[legend]

Public Member Functions
bool	Start (void)
	Because this uses a TransportUDP connection it will call XPURL::RegisterDefaultTransports()

void	SetServer (const XPAddress &address)

bool	WantToUpload (const char *userNonce, const int scriptID)

bool	UploadData (const void *data, const int size)

bool	BeginSession (const int scriptID)
	Begins a statistics tracking session.

bool	UpdatePairsBegin (const char *userNonce)
	For a supplied user nonce begin updating value pairs.

bool	UpdatePairsValue (const char name, const char value=0)
	Sends a value pair to the server. The name and value string is limited to 128 chars. (StatServerPrivate::kMaximumPairValueSize)

bool	UpdatePairsValue (const char *name, const int value)
	Sends a value pair to the server. The name is limited to 128 chars. (StatServerPrivate::kMaximumPairValueSize)

bool	UpdatePairsValue (const char *name, const float value)
	Sends a value pair to the server. The name is limited to 128 chars. (StatServerPrivate::kMaximumPairValueSize)

bool	UpdatePairsEnd (void)
	End updating the current batch of value pairs.

bool	EndSession (void)

Public Member Functions inherited from BaseTransportServer
void	SetEncryptionKey (const void *data, const int length)

virtual bool	StartWithTransport (Transport *transport, const bool allowDelete=true, const bool isListen=true)

virtual bool	Stop (void)

size_t	GetNumConnections (void) const
	Returns the number of active connections.

size_t	GetNumTotalSessions (void) const
	Returns the total number of connections.

bool	SetAsDisconnecting (Transport *transport)
	This will put the connection into a list pending disconnection after a timeout period.

Public Member Functions inherited from ThreadClass
	ThreadClass ()

virtual	~ThreadClass ()

void	Sleep (int milliseconds)

Public Member Functions inherited from MutexClass
	MutexClass ()

virtual	~MutexClass ()

void	Lock (void)

void	UnLock (void)

Public Member Functions inherited from Thread
	Thread ()

virtual	~Thread ()

void	Begin (ThreadClass *threaded_class)

void	Terminate (void)

bool	GetTerminated (void)

bool	GetEverTerminated (void)

bool	GetIsRunning (void) const

void	SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice)

int	GetPreferredProcessor (void)

Protected Member Functions
virtual void	CallbackConnectionEstablished (Transport *transport)
	User extensible callbacks. More...

virtual void	CallbackUploadAuthenticationFailure (void)
	A virtual callback that is triggered when the userNonce from WantToUpload() fails the authentication check.

virtual void	CallbackUploadAuthenticationSuccess (void)
	A virtual callback that is triggered when the userNonce from WantToUpload() passes the authentication check.

virtual void	CallbackUploadACK (const int scriptID)
	A virtual callback that is triggered when UploadData() succeeds.

virtual void	CallbackBeginSession ()
	A virtual callback that is triggered when the StatServer processes the BeginSession() request.

virtual void	CallbackEndSession ()

virtual void	CallbackEndSessionScriptNotFound ()

virtual void	CallbackEndSessionScriptNotCompleted ()

void	CallbackTidy (void)

bool	CallbackPoll (void)

bool	CallbackParseValidMessage (Transport *transport, DynamicMessageHelper &message, const size_t length)

void	InitInternalState (void)

Protected Member Functions inherited from BaseTransportServer
virtual bool	PackageAndSendData (Transport *transport, const DynamicMessageHelper &message)
	The class mutex is locked during the context of this function.

virtual bool	CallbackParsePacketData (Transport transport, void data, size_t &length, DynamicMessageHelper &result, Entry &entry)

virtual void	CallbackAccepted (Transport *transport)
	Called when the server accepts a connection or when a non-listen class instance connection gets a first valid reply from the server.

virtual void	CallbackDisconnected (Transport *transport)
	Called when the transport is disconnected. This is also called if there is a problem trying to connect. It is therefore possible for a non-listen class instance to receive this callback without a corresponding CallbackAccepted()

virtual void	CallbackDataReceived (DynamicMessageHelper &message)

virtual void	CallbackDataSend (DynamicMessageHelper &message)

virtual void	CallbackQueryReplyTime (const float seconds)

int	ThreadEntry (void)

void	GenerateNewNonce (void)

int	GetConnectionNOnce (Transport transport=0, const Entry entry=0)
	Gets the connection's NOnce with respect to a Transport.

int	CalculateConnectionNOnce (Transport *transport)

const Entry *	FindEntry (Transport *transport)

Protected Member Functions inherited from ThreadClass
void	DoQuitNow (const int returnCode)

void	CheckQuit (void)

Protected Attributes
XPAddress	mServerAddress

bool	mServerAddressSet

bool	mCanUpload

bool	mInASession

bool	mUpdatingPairs

Protected Attributes inherited from BaseTransportServer
Transport *	mTransport

bool	mAllowDelete

int	mNOnce

std::map< Transport *, Entry >	mConnected

bool	mIsListen

bool	mClientGotAPacket

bool	mClientIsStable

Entry	mClientEntry

size_t	mNumConnections

size_t	mNumTotalConnections

Additional Inherited Members
Public Types inherited from MutexClass
enum	{ kNoOwnerThread = -1 }

Static Public Member Functions inherited from BaseTransportServer
static SysTimeType	FloatTime (void)

Static Public Member Functions inherited from Thread
static int	CallThreadEntry (ThreadClass *thread_class)

static int	GetCurrentProcessorNumber (void)

static size_t	GetNumAllocated (void)

static size_t	GetNumActive (void)

Static Protected Member Functions inherited from ThreadClass
static size_t	GetNumAllocated (void)

Detailed Description

Maintains a connection to the StatServer.

Member Function Documentation

virtual void CallbackConnectionEstablished ( Transport * transport )

inlineprotectedvirtual

User extensible callbacks.

A virtual callback that is triggered when the StatClient connects the the StatServer.

virtual void CallbackEndSession ( )

inlineprotectedvirtual

A virtual callback that is triggered when the StatServer has finished processing the session. Even if there is an error processing the session this callback is called.

virtual void CallbackEndSessionScriptNotCompleted ( )

inlineprotectedvirtual

A virtual callback that is triggered when the StatServer is unable to complete a script. Most likely due to an exception or the script taking too long to execute. This is called before CallbackEndSession()

virtual void CallbackEndSessionScriptNotFound ( )

inlineprotectedvirtual

A virtual callback that is triggered when the StatServer is unable to find the script. This is called before CallbackEndSession()

bool CallbackParseValidMessage	(	Transport *	transport,
		DynamicMessageHelper &	message,
		const size_t	length
	)

protectedvirtual

Called from the scope of the thread but without the class mutex being locked. If a MessageHelper::Exception() is caught by this server class the connection will be terminated.

Reimplemented from BaseTransportServer.

bool CallbackPoll ( void )

protectedvirtual

Called from the scope of the thread but without the class mutex being locked. This can be called with or without a valid mTransport

Reimplemented from BaseTransportServer.

void CallbackTidy ( void )

protectedvirtual

This callback may be used to tidy allocation of objects when the thread terminates. The class mutex is locked when executing this callback.

Reimplemented from BaseTransportServer.

bool EndSession ( void )

End the statistics tracking session and start the script processing on the StatServer. On the StatServer for each authenticated player this calls the script function ProcessPlayer with the loginID in its own thread. The script function ProcessGame is also called once in its own thread. Each player and tracking session thread has an allocated 2000 script cycles to complete the work and update stats. It is a good idea to use the RNSimpleScriptDebugger to measure how many cycles each function takes. An example script, note the standard include header BootStat of the AsmBranch commands (each 5 bytes) for the script entry point. This BootStat file can instead be included first in the input file list.

    #include <BootStat>

    DefProc ProcessPlayer(loginID)
    EndProc

    DefProc ProcessGame()
    EndProc

Using this standard script it is possible to use the debugger to call the second branch using the command line, using 5 (5 bytes for the AsmBranch) as the start address:

RNSimpleScriptDebugger.exe script.bin 5 script.bnd

void SetServer ( const XPAddress & address )

Sets the address and port of the server. The default for the instance of the class is localhost and port StatServer::kDefaultPort or the address resolved by a successful BackendClient::Start().

Parameters

address The new address and port number to use for the server

bool UploadData	(	const void *	data,
		const int	size
	)

Following a successful request to WantToUpload() this function must be used to transfer script data to the server.

Parameters

data	The data to send.
size	The size of the data to send. Currently there is a limit of 64 kilobytes (65536 bytes) (StatServerPrivate::kMaximumScriptSize).

bool WantToUpload	(	const char *	userNonce,
		const int	scriptID
	)

Using a user nonce, returned from UserClient::RequestUserNonce(), request to upload a script with the corresponding ID. CallbackUploadAuthenticationFailure() is called if the userNonce authentication fails. CallbackUploadAuthenticationSuccess() is called if the userNonce authentication succeeds.
