A server base class that handles encrypted messages to and from a transport. More...

#include <BaseTransportServer.h>

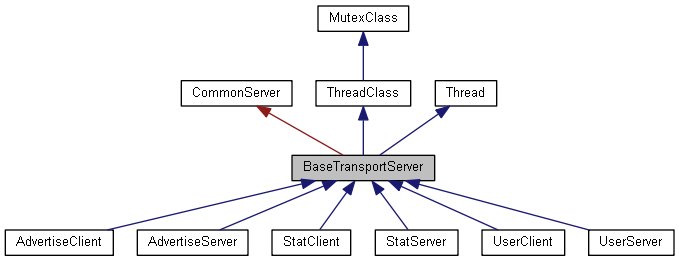

Inheritance diagram for BaseTransportServer:

[legend]

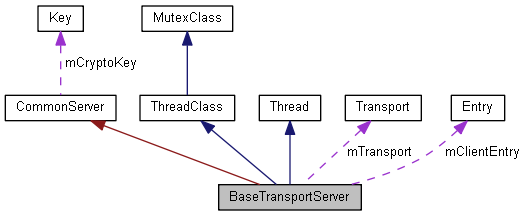

Collaboration diagram for BaseTransportServer:

[legend]

Classes
struct	Entry

Public Member Functions
void	SetEncryptionKey (const void *data, const int length)

virtual bool	StartWithTransport (Transport *transport, const bool allowDelete=true, const bool isListen=true)

virtual bool	Stop (void)

size_t	GetNumConnections (void) const
	Returns the number of active connections.

size_t	GetNumTotalSessions (void) const
	Returns the total number of connections.

bool	SetAsDisconnecting (Transport *transport)
	This will put the connection into a list pending disconnection after a timeout period.

Public Member Functions inherited from ThreadClass
	ThreadClass ()

virtual	~ThreadClass ()

void	Sleep (int milliseconds)

Public Member Functions inherited from MutexClass
	MutexClass ()

virtual	~MutexClass ()

void	Lock (void)

void	UnLock (void)

Public Member Functions inherited from Thread
	Thread ()

virtual	~Thread ()

void	Begin (ThreadClass *threaded_class)

void	Terminate (void)

bool	GetTerminated (void)

bool	GetEverTerminated (void)

bool	GetIsRunning (void) const

void	SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice)

int	GetPreferredProcessor (void)

Static Public Member Functions
static SysTimeType	FloatTime (void)

Static Public Member Functions inherited from Thread
static int	CallThreadEntry (ThreadClass *thread_class)

static int	GetCurrentProcessorNumber (void)

static size_t	GetNumAllocated (void)

static size_t	GetNumActive (void)

Protected Member Functions
virtual bool	CallbackParseValidMessage (Transport *transport, DynamicMessageHelper &message, const size_t length)

virtual bool	PackageAndSendData (Transport *transport, const DynamicMessageHelper &message)
	The class mutex is locked during the context of this function.

virtual bool	CallbackParsePacketData (Transport transport, void data, size_t &length, DynamicMessageHelper &result, Entry &entry)

virtual void	CallbackAccepted (Transport *transport)
	Called when the server accepts a connection or when a non-listen class instance connection gets a first valid reply from the server.

virtual void	CallbackDisconnected (Transport *transport)
	Called when the transport is disconnected. This is also called if there is a problem trying to connect. It is therefore possible for a non-listen class instance to receive this callback without a corresponding CallbackAccepted()

virtual void	CallbackDataReceived (DynamicMessageHelper &message)

virtual void	CallbackDataSend (DynamicMessageHelper &message)

virtual void	CallbackQueryReplyTime (const float seconds)

virtual bool	CallbackPoll (void)

virtual void	CallbackTidy (void)

int	ThreadEntry (void)

void	GenerateNewNonce (void)

int	GetConnectionNOnce (Transport transport=0, const Entry entry=0)
	Gets the connection's NOnce with respect to a Transport.

int	CalculateConnectionNOnce (Transport *transport)

const Entry *	FindEntry (Transport *transport)

Protected Member Functions inherited from ThreadClass
void	DoQuitNow (const int returnCode)

void	CheckQuit (void)

Protected Attributes
Transport *	mTransport

bool	mAllowDelete

int	mNOnce

std::map< Transport *, Entry >	mConnected

bool	mIsListen

bool	mClientGotAPacket

bool	mClientIsStable

Entry	mClientEntry

size_t	mNumConnections

size_t	mNumTotalConnections

Additional Inherited Members
Public Types inherited from MutexClass
enum	{ kNoOwnerThread = -1 }

Static Protected Member Functions inherited from ThreadClass
static size_t	GetNumAllocated (void)

Detailed Description

A server base class that handles encrypted messages to and from a transport.

Member Function Documentation

virtual void CallbackDataReceived ( DynamicMessageHelper & message )

inlineprotectedvirtual

This callback may be used to alter data after it has been received and before the data received is processed.

Parameters

message The data held in a DynamicMessageHelper class.

virtual void CallbackDataSend ( DynamicMessageHelper & message )

inlineprotectedvirtual

This callback may be used to alter any data in a reply, just before it gets sent by the socket.

Parameters

message The data held in a DynamicMessageHelper class.

virtual bool CallbackParsePacketData	(	Transport *	transport,
		void *	data,
		size_t &	length,
		DynamicMessageHelper &	result,
		Entry &	entry
	)

protectedvirtual

The class mutex is locked during the context of this function. The default operation is to decrypt the packet and then set result.SetGuardSize() with the size of the data and then call CallbackParseValidMessage(). This will cause a MessageHepler::Exception() exception to be thrown and may be caught by the user parser routines or will be caught by this server class.

Parameters

result The resultant data after decrypting and length will be updated with the new packet length.

virtual bool CallbackParseValidMessage	(	Transport *	transport,
		DynamicMessageHelper &	message,
		const size_t	length
	)

inlineprotectedvirtual

Called from the scope of the thread but without the class mutex being locked. If a MessageHelper::Exception() is caught by this server class the connection will be terminated.

Reimplemented in UserClient, AdvertiseClient, and StatClient.

virtual bool CallbackPoll ( void )

inlineprotectedvirtual

Called from the scope of the thread but without the class mutex being locked. This can be called with or without a valid mTransport

Reimplemented in UserClient, AdvertiseClient, and StatClient.

virtual void CallbackQueryReplyTime ( const float seconds )

inlineprotectedvirtual

This callback reports how long a query and reply took starting from when packet data was received until the packet data is sent.

Parameters

seconds The time in seconds.

virtual void CallbackTidy ( void )

inlineprotectedvirtual

This callback may be used to tidy allocation of objects when the thread terminates. The class mutex is locked when executing this callback.

Reimplemented in UserClient, AdvertiseClient, and StatClient.

void SetEncryptionKey	(	const void *	data,
		const int	length
	)

Sets the encryption key to be used by all queries for this server. The same key must be used with any other RNLobby::BaseTransportServer querying this server.

Parameters

data	The data to use as a seed for the key. This can be NULL to use the default key.
length	The length of the data to use for creating the key.

virtual bool StartWithTransport	(	Transport *	transport,
		const bool	allowDelete = `true`,
		const bool	isListen = `true`
	)

virtual

Starts the thread. If this function is overridden then this base implementation must also be called.

Parameters

transport	The transport to poll for this class.
allowDelete	When true this class is responsible for deleting the socket.
isListen	When true this class will listen for connections on the

Returns: Success returns true, failure returns false.

virtual bool Stop ( void )

virtual

Stops the thread. If this function is overridden then this base implementation must also be called. This will not generate CallbackDisconnected() events for any existing connections.

Returns: Success returns true, failure returns false.

Reimplemented in UserClient.

int ThreadEntry ( void )

protectedvirtual

The thread starts executing from here.

Implements ThreadClass.
