BackendClient Class Reference

#include <BackendClient.h>

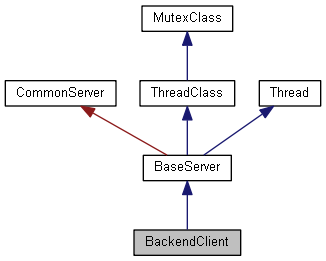

Inheritance diagram for BackendClient:

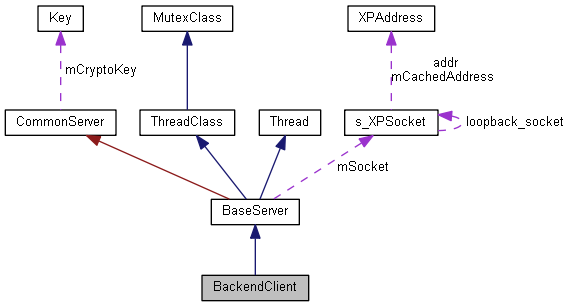

Collaboration diagram for BackendClient:

Public Member Functions
bool	Start (const int titleID, const char *encryptionKey)
bool	GetCompleted (void)
BackendServer::Reply	GetReply (void) const
virtual void	CallbackCompleted (void)
virtual bool	CallbackServerAddress (XPAddress &address)
void	UseReleaseServers (const bool use=false)
Public Member Functions inherited from BaseServer
virtual bool	StartWithSocket (t_XPSocket *socket, const bool allowDelete=true)
virtual bool	Stop (void)
void	SetEncryptionKey (const void *data, const int length)
virtual void	CallbackDataReceived (DynamicMessageHelper &message, XPAddress &address)
virtual void	CallbackDataSend (DynamicMessageHelper &message, XPAddress &address)
virtual void	CallbackQueryReplyTime (const float seconds)
virtual void	CallbackTidy (void)
Public Member Functions inherited from ThreadClass
	ThreadClass ()
virtual	~ThreadClass ()
void	Sleep (int milliseconds)
Public Member Functions inherited from MutexClass
	MutexClass ()
virtual	~MutexClass ()
void	Lock (void)
void	UnLock (void)
Public Member Functions inherited from Thread
	Thread ()
virtual	~Thread ()
void	Begin (ThreadClass *threaded_class)
void	Terminate (void)
bool	GetTerminated (void)
bool	GetEverTerminated (void)
bool	GetIsRunning (void) const
void	SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice)
int	GetPreferredProcessor (void)

Static Public Member Functions
static void	DisableValidateOrderingCheck (void)
static bool	IsAuthenticated (void)
	When the BackendClient has successfully completed an authentication request this returns true.
Static Public Member Functions inherited from BaseServer
static SysTimeType	FloatTime (void)
Static Public Member Functions inherited from Thread
static int	CallThreadEntry (ThreadClass *thread_class)
static int	GetCurrentProcessorNumber (void)
static size_t	GetNumAllocated (void)
static size_t	GetNumActive (void)

Additional Inherited Members
Public Types inherited from MutexClass
enum	{ kNoOwnerThread = -1 }
Protected Member Functions inherited from BaseServer
virtual bool	PackageAndSendData (t_XPSocket *socket, const DynamicMessageHelper &message, const XPAddress &address)
virtual bool	CallbackParsePacketData (t_XPSocket *socket, const XPAddress &addr, void *data, size_t &length, DynamicMessageHelper &result)
int	ThreadEntry (void)
Protected Member Functions inherited from ThreadClass
void	DoQuitNow (const int returnCode)
void	CheckQuit (void)
Static Protected Member Functions inherited from ThreadClass
static size_t	GetNumAllocated (void)
Protected Attributes inherited from BaseServer
t_XPSocket *	mSocket
bool	mAllowDelete
int	mNOnce

Detailed Description

This backend client can query a backend server to verify the title ID is valid, or can be used to program the rest of the interfaces used by RNLobby.
When using this class to verify a titleID BackendClient::GetReply() must successfully return BackendServer::kReply_ValidTitleID before any other RNLobby client classes are started with their Start() member functions. This is because BackendClient will set the correct server address and encryption key to use for each component service when the component is constructed.

Member Function Documentation

virtual bool CallbackServerAddress ( XPAddress &  address )

virtual

Returns

Success returns true, failure returns false.

static void DisableValidateOrderingCheck ( void  )

static

In debug mode an assert will be generated if BackendClient is used after any other RNLobby service. To disable this check for the cases where LAN mode (without internet verification) is used before connecting to the internet please call this function.

bool GetCompleted

(

void

)

Tests the completion state of the last query. When the query completes the result can be retrieved by using GetReply()

Returns

A completed query returns true, a pending query returns false.

BackendServer::Reply GetReply

(

void

)

const

Returns the last reply from a completed query.

Returns

The last reply from a completed query.

bool Start	(	const int	titleID,
		const char *	encryptionKey
	)

Starts a thread to verify the supplied title ID and encryption key. Using title ID 0 (zero) with any encryption key is a special case and will allow locally hosted servers to be used for debugging purposes.

Returns

Success returns true, failure returns false.

void UseReleaseServers

(

const bool

use = false

)

Sets BackendClient to query the debug or release servers for server configuration information. For development use the debug servers. For public releases use the release servers.

Parameters

use	Set to true to use the release servers. By default the debug servers are used.
