A server base class that handles encrypted messages to and from a socket. More...

#include <BaseServer.h>

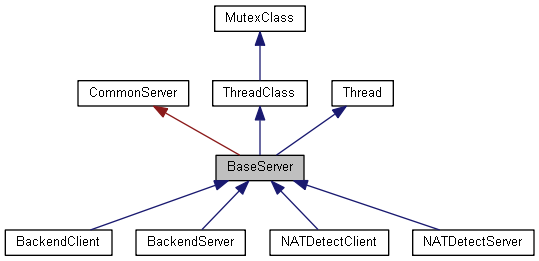

Inheritance diagram for BaseServer:

[legend]

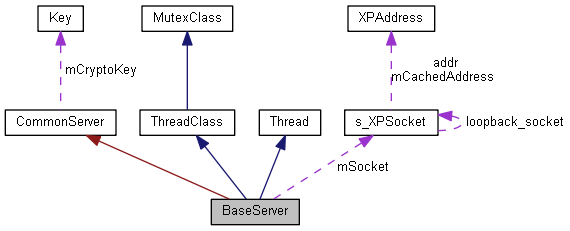

Collaboration diagram for BaseServer:

[legend]

Public Member Functions
virtual bool	StartWithSocket (t_XPSocket *socket, const bool allowDelete=true)

virtual bool	Stop (void)

void	SetEncryptionKey (const void *data, const int length)

virtual void	CallbackDataReceived (DynamicMessageHelper &message, XPAddress &address)

virtual void	CallbackDataSend (DynamicMessageHelper &message, XPAddress &address)

virtual void	CallbackQueryReplyTime (const float seconds)

virtual bool	CallbackPoll (void)

virtual void	CallbackTidy (void)

Public Member Functions inherited from ThreadClass
	ThreadClass ()

virtual	~ThreadClass ()

void	Sleep (int milliseconds)

Public Member Functions inherited from MutexClass
	MutexClass ()

virtual	~MutexClass ()

void	Lock (void)

void	UnLock (void)

Public Member Functions inherited from Thread
	Thread ()

virtual	~Thread ()

void	Begin (ThreadClass *threaded_class)

void	Terminate (void)

bool	GetTerminated (void)

bool	GetEverTerminated (void)

bool	GetIsRunning (void) const

void	SetPreferredProcessor (int processor=kReplicaNetPreferredProcessorOSChoice)

int	GetPreferredProcessor (void)

Static Public Member Functions
static SysTimeType	FloatTime (void)

Static Public Member Functions inherited from Thread
static int	CallThreadEntry (ThreadClass *thread_class)

static int	GetCurrentProcessorNumber (void)

static size_t	GetNumAllocated (void)

static size_t	GetNumActive (void)

Protected Member Functions
virtual bool	CallbackParseValidMessage (DynamicMessageHelper &message, const size_t length, const XPAddress &address)

virtual bool	PackageAndSendData (t_XPSocket *socket, const DynamicMessageHelper &message, const XPAddress &address)

virtual bool	CallbackParsePacketData (t_XPSocket socket, const XPAddress &addr, void data, size_t &length, DynamicMessageHelper &result)

int	ThreadEntry (void)

Protected Member Functions inherited from ThreadClass
void	DoQuitNow (const int returnCode)

void	CheckQuit (void)

Protected Attributes
t_XPSocket *	mSocket

bool	mAllowDelete

int	mNOnce

Additional Inherited Members
Public Types inherited from MutexClass
enum	{ kNoOwnerThread = -1 }

Static Protected Member Functions inherited from ThreadClass
static size_t	GetNumAllocated (void)

Detailed Description

A server base class that handles encrypted messages to and from a socket.

Member Function Documentation

virtual void CallbackDataReceived	(	DynamicMessageHelper &	message,
		XPAddress &	address
	)

inlinevirtual

This callback may be used to alter data after it has been received and before the data received is processed.

Parameters

message	The data held in a DynamicMessageHelper class.
address	The network address for this data packet. The contents of the address may be changed if required.

virtual void CallbackDataSend	(	DynamicMessageHelper &	message,
		XPAddress &	address
	)

inlinevirtual

This callback may be used to alter any data in a reply, just before it gets sent by the socket.

Parameters

message	The data held in a DynamicMessageHelper class.
address	The network address for this data packet. The contents of the address may be changed if required.

virtual bool CallbackParsePacketData	(	t_XPSocket *	socket,
		const XPAddress &	addr,
		void *	data,
		size_t &	length,
		DynamicMessageHelper &	result
	)

protectedvirtual

The class mutex is locked during the context of this function.

Parameters

result The resultant data after decrypting and length will be updated with the new packet length.

virtual bool CallbackParseValidMessage	(	DynamicMessageHelper &	message,
		const size_t	length,
		const XPAddress &	address
	)

inlineprotectedvirtual

Called from the scope of the thread but without the class mutex being locked.

Returns: Return true to indicate this service class should continue to run. If false is returned this will stop the receiving thread and shutdown this server class.

virtual bool CallbackPoll ( void )

inlinevirtual

Called from the scope of the thread but without the class mutex being locked.

Returns: Return true to indicate this service class should continue to run. If false is returned this will stop the receiving thread and shutdown this server class.

virtual void CallbackQueryReplyTime ( const float seconds )

inlinevirtual

This callback reports how long an query and reply took starting from when packet data was received until the packet data is sent.

Parameters

seconds The time in seconds.

virtual void CallbackTidy ( void )

inlinevirtual

This callback may be used to tidy allocation of objects when the thread terminates. The class mutex is locked when executing this callback.

virtual bool PackageAndSendData	(	t_XPSocket *	socket,
		const DynamicMessageHelper &	message,
		const XPAddress &	address
	)

protectedvirtual

The class mutex is locked during the context of this function.

Returns: Return true to indicate this service class should continue to run. If false is returned this will stop the receiving thread and shutdown this server class.

void SetEncryptionKey	(	const void *	data,
		const int	length
	)

Sets the encryption key to be used by all queries for this server. The same key must be used with any other RNLobby::BaseServer querying this server.

Parameters

data	The data to use as a seed for the key. This can be NULL to use the default key.
length	The length of the data to use for creating the key.

virtual bool StartWithSocket	(	t_XPSocket *	socket,
		const bool	allowDelete = `true`
	)

virtual

Starts the thread. If this function is overridden then this base implementation must also be called.

Parameters

socket	The socket to poll for this class.
allowDelete	When true this class is responsible for deleting the socket.

Returns: Success returns true, failure returns false.

virtual bool Stop ( void )

virtual

Stops the thread. If this function is overridden then this base implementation must also be called.

Returns: Success returns true, failure returns false.

int ThreadEntry ( void )

protectedvirtual

The thread starts executing from here.

Implements ThreadClass.
