#include <DataBlock_NData.h>

Inheritance diagram for DataBlock_NData:

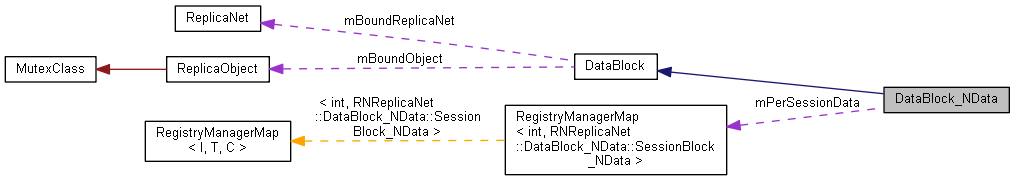

Collaboration diagram for DataBlock_NData:

[legend]

Classes
struct	SessionBlock_NData

Public Member Functions
	RN_CLASS_MINIMAL_RTTI ()

	DataBlock_NData ()

virtual	~DataBlock_NData ()

virtual void	Poll (DataBlockReason *reason, const bool discardOlderIncluded=false, const unsigned int discardOrder=0)

virtual void	ParseMessage (MessageHelper *message)

void	RegisterInClassPointer (void *const data, const int size)

void	SetDefaultData (const void *data)

bool	IsAttached (void *data)

void	SetEndianTest (const bool test=true)

bool	GetEndianTest (void) const

virtual void	OwnerChanged (const int sessionID)

Public Member Functions inherited from DataBlock
virtual int	GetThisClassType (void)

	DataBlock ()

virtual	~DataBlock ()

void	SetVariableName (const char *name=0)

void	BindReplicaNet (ReplicaNet *current)

void	BindReplicaObject (ReplicaObject *object)

void	SetReliableFlag (bool reliable=false)

bool	GetReliableFlag (void) const

void	SetCertainFlag (bool certain=false)

bool	GetCertainFlag (void) const

void	SetOrderedFlag (bool ordered=false)

bool	GetOrderedFlag (void) const

void	SetDiscardOlder (const int windowBits=0)

int	GetDiscardOlder (void) const

void	SetAutomaticUpdatesFlag (bool automatic=true)

bool	GetAutomaticUpdatesFlag (void) const

virtual void	GiveDeltaHint (void *pdata, int dataLen)

void	GiveDeltaHint (float delta)

virtual void	ContinuityBreak (unsigned char breakTypes)

void	SetForceReflectionUpdate (const bool enable=false)

bool	GetForceReflectionUpdate (void)

void	SetReflectionMasterUpdate (const bool enable=false)

bool	GetReflectionMasterUpdate (void)

virtual bool	IsAllocated (void) const

void	SetIsAllocated (const bool isAllocated=true)

void	SetUpdateDelayMinimum (const float delay=0.0f)

float	GetUpdateDelayMinimum (void) const

void	SetForceSendMaximumUpdates (const int updates=0)

int	GetForceSendMaximumUpdates (void) const

void	SetForceSendTimeDelay (const float delay=0.0f)

float	GetForceSendTimeDelay (void) const

void	SetBand (const unsigned int band=0)

unsigned int	GetBand (void) const

bool	ShouldDiscard (MessageHelper *message)

bool	GetDiscardThisUpdate (void) const

Static Public Member Functions
static DataBlock_NData *	Register (void *const data, const int size)

Protected Member Functions
void	FreeSessionBlocks (void)

Protected Member Functions inherited from DataBlock
void	SetID (int id)

const char *	GetROName (ReplicaObject *from=0)

void	EmitBaseDebugInfo (const char name, const char className, DataBlockReason *reason)

void	EmitBaseDebugInfoUpdates (const char name, const char className, DataBlockReason *reason)

std::string	GetVariableName (void)

Protected Attributes
void *	mData

int	mSize

RegistryManagerMap< int, SessionBlock_NData >	mPerSessionData

void *	mDefaultData

bool	mDisableEndian

Protected Attributes inherited from DataBlock
short	mID

ReplicaNet *	mBoundReplicaNet

ReplicaObject *	mBoundObject

bool	mReliable

bool	mCertain

bool	mOrdered

bool	mAutomaticUpdates

bool	mIsAllocated

bool	mDebugOn

char *	mDebugText

float	mUpdateDelayMinimum

int	mForceSendMaximumUpdates

float	mForceSendTimeDelay

char *	mVariableName

unsigned int	mBand

int	mDiscardOlder

unsigned int	mDiscardOlderMidPoint

unsigned int	mDiscardOlderEndPoint

size_t	mDiscardOlderRealSize

unsigned int	mLocalisedOrderingSent

unsigned int	mLocalisedOrderingReceived

bool	mDiscardThisUpdate

bool	mForceReflectionUpdate

bool	mReflectionMasterUpdate

Additional Inherited Members
Public Types inherited from DataBlock
enum	ContinuityBreakTypes { kStop = 1, kSuddenChange = 2, kTeleport = 4 }

Detailed Description

This DataBlock derived class scans the registered area for changes and if needed creates a packet detailing those changes
This DataBlock does not do any lag compensation or prediction. It just informs each replica of a change when one is made. By default the DataBlock will preserve the endian format of the data. To disable the endian check, an example would be for string data, then SetEndianTest(false) or the ROL command DisableEndianTest();

Constructor & Destructor Documentation

DataBlock_NData ( )

The ctor performs some basic initialisation

virtual ~DataBlock_NData ( )

virtual

The dtor makes sure everything is tidy

Member Function Documentation

bool IsAttached ( void * data )

virtual

Given a data pointer this function identifies if this data block is attached to the pointer.

Returns: Returns true if the data pointer is attached to this data block.

Reimplemented from DataBlock.

virtual void OwnerChanged ( const int sessionID )

virtual

Called by ReplicaNet to indicate a change in owner. If this virtual method is implemented by a derived class the parent method must also be called.

Reimplemented from DataBlock.

virtual void ParseMessage ( MessageHelper * message )

virtual

This parses a message for the derived class of this data block. If this virtual method is implemented by a derived class the parent method should be called. Implementation note: The same amount of data added to the message during the Poll() must equal the length of data retrieved during this function. Care must be taken when implementing functionality such as GetDiscardOlder() to preserve the length of data. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

message The current message buffer that contains the packet data

Reimplemented from DataBlock.

virtual void Poll	(	DataBlockReason *	reason,
		const bool	discardOlderIncluded = `false`,
		const unsigned int	discardOrder = `0`
	)

virtual

A poll function that is called by ReplicaNet to check for updates to this particular data block. If this virtual method is implemented by a derived class the parent method should be called before a data packet is created. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

reason	the reason code that is passed in to this class to enable a response to be calculated
discardOlderIncluded	When true and using SetDiscardOlder() this gives a hint to the DataBlock that the derived class has filled in a valid value for discardOrder. The default value is false and the DataBlock will use a global discard order seqeunce.
discardOrder	When using SetDiscardOlder() and discardOlderIncluded is true this must contain a valid order sequence number for the update. The sequence should be unique for each target sessionID for the update. Since the sequence number is local for each target sessionID the window size for SetDiscardOlder() can be smaller.

Reimplemented from DataBlock.

static DataBlock_NData* Register	(	void *const	data,
		const int	size
	)

static

This registers the memory area with this data block type and returns a new pointer

Parameters

data	the start of the memory to check
size	the size of the data block

Returns: Returns a pointer that can be used to attach to a ReplicaObject

void RegisterInClassPointer	(	void *const	data,
		const int	size
	)

inline

This registers the memory area with this data block type. This is used when the memory is in datablocks that are allocated as part of a bigger class.

Parameters

data	the start of the memory to check
size	the size of the data block

void SetDefaultData ( const void * data )

This allows a block of memory to be passed in that shows a default state of the data block. This default memory state is copied so it can be temporary. When a session joins or an object is created, the datablock states are serialised. By setting a default state the user can avoid the extra data being sent out for the datablock state.

Parameters

data	the pointer to the memory.
