#include <DataBlock.h>

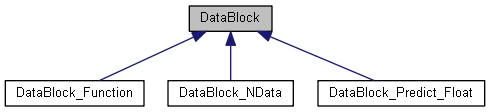

Inheritance diagram for DataBlock:

Collaboration diagram for DataBlock:

Public Types
enum	ContinuityBreakTypes { kStop = 1, kSuddenChange = 2, kTeleport = 4 }

Public Member Functions
virtual int	GetThisClassType (void)

	DataBlock ()

virtual	~DataBlock ()

virtual void	Poll (DataBlockReason *reason=0, const bool discardOlderIncluded=false, const unsigned int discardOrder=0)

virtual void	ParseMessage (MessageHelper *message)

void	SetVariableName (const char *name=0)

void	BindReplicaNet (ReplicaNet *current)

void	BindReplicaObject (ReplicaObject *object)

void	SetReliableFlag (bool reliable=false)

bool	GetReliableFlag (void) const

void	SetCertainFlag (bool certain=false)

bool	GetCertainFlag (void) const

void	SetOrderedFlag (bool ordered=false)

bool	GetOrderedFlag (void) const

void	SetDiscardOlder (const int windowBits=0)

int	GetDiscardOlder (void) const

void	SetAutomaticUpdatesFlag (bool automatic=true)

bool	GetAutomaticUpdatesFlag (void) const

virtual void	GiveDeltaHint (void *pdata, int dataLen)

void	GiveDeltaHint (float delta)

virtual void	ContinuityBreak (unsigned char breakTypes)

void	SetForceReflectionUpdate (const bool enable=false)

bool	GetForceReflectionUpdate (void)

void	SetReflectionMasterUpdate (const bool enable=false)

bool	GetReflectionMasterUpdate (void)

virtual bool	IsAttached (void *data)

virtual bool	IsAllocated (void) const

void	SetIsAllocated (const bool isAllocated=true)

void	SetUpdateDelayMinimum (const float delay=0.0f)

float	GetUpdateDelayMinimum (void) const

void	SetForceSendMaximumUpdates (const int updates=0)

int	GetForceSendMaximumUpdates (void) const

void	SetForceSendTimeDelay (const float delay=0.0f)

float	GetForceSendTimeDelay (void) const

void	SetBand (const unsigned int band=0)

unsigned int	GetBand (void) const

bool	ShouldDiscard (MessageHelper *message)

virtual void	OwnerChanged (const int sessionID)

bool	GetDiscardThisUpdate (void) const

Protected Member Functions
void	SetID (int id)

const char *	GetROName (ReplicaObject *from=0)

void	EmitBaseDebugInfo (const char name, const char className, DataBlockReason *reason)

void	EmitBaseDebugInfoUpdates (const char name, const char className, DataBlockReason *reason)

std::string	GetVariableName (void)

Protected Attributes
short	mID

ReplicaNet *	mBoundReplicaNet

ReplicaObject *	mBoundObject

bool	mReliable

bool	mCertain

bool	mOrdered

bool	mAutomaticUpdates

bool	mIsAllocated

bool	mDebugOn

char *	mDebugText

float	mUpdateDelayMinimum

int	mForceSendMaximumUpdates

float	mForceSendTimeDelay

char *	mVariableName

unsigned int	mBand

int	mDiscardOlder

unsigned int	mDiscardOlderMidPoint

unsigned int	mDiscardOlderEndPoint

size_t	mDiscardOlderRealSize

unsigned int	mLocalisedOrderingSent

unsigned int	mLocalisedOrderingReceived

bool	mDiscardThisUpdate

bool	mForceReflectionUpdate

bool	mReflectionMasterUpdate

Friends
class	ReplicaObject

Detailed Description

A ReplicaObject derived class can have any number of variables that need to be shared to the corresponding replicas.
A data block is a class that monitors for a change of a specific variable in a master object and if needed creates a data packet that is sent around the session to other replicas.
It is possible for a DataBlock to receive kDataBlockReason_CalculateMasterPoll and kDataBlockReason_ReplicaPrepAfterTakeover, thus allowing a DataBlock to be a master and a replica at the same time and this can allow a DataBlock to reflect propagated values. Each new data type that can get shared across a network creates a new class that inherits from this one. For IsClassType() and GetThisClassType() to work the DataBlock type checking must be enabled by including the RN_CLASS_MINIMAL_RTTI macro in the public part of a derived class definition.

Member Enumeration Documentation

enum ContinuityBreakTypes

Enums for the continuity break function

Enumerator
kStop	Indicates the data set value has stopped changing for the time being
kSuddenChange	Indicates a sudden change in direction or movement
kTeleport	Indicates the value has a large dislocation i.e. An object has teleported. This can result in an update being calculated and sent for a DataBlock so use with care.

Constructor & Destructor Documentation

DataBlock ( )

The ctor performs some basic initialisation

virtual ~DataBlock ( )

virtual

The dtor makes sure everything is tidy

Member Function Documentation

void BindReplicaNet ( ReplicaNet * current )

Bind this data block with the ReplicaNet pointer. This is called from ReplicaObject::RegisterDataBlock()

Parameters

current the ReplicaNet pointer

void BindReplicaObject ( ReplicaObject * object )

Bind this data block with the ReplicaObject pointer. This is called from ReplicaObject::RegisterDataBlock()

Parameters

current the ReplicaObject pointer

virtual void ContinuityBreak ( unsigned char breakTypes )

virtual

This is used by a master ReplicaObject to set a continuity break for the data block and provides useful information to any extrapolation algorithms.

Parameters

breakTypes The break types to use for this break. For example : DataBlock::kSuddenChange | DataBlock::kTeleport

Reimplemented in DataBlock_Predict_Float.

bool GetAutomaticUpdatesFlag ( void ) const

Gets the automatic update flag for a particular data set

Returns: if this data block is meant to be automatically updated true is returned

unsigned int GetBand ( void ) const

This function returns the value set by SetBand()

Returns: The value.

bool GetCertainFlag ( void ) const

Gets the reliable flag for a particular data set

Returns: if this data block is meant to be certain true is returned

int GetDiscardOlder ( void ) const

Gets the update ordered flag for a particular data set

Returns: if this data block is meant to be ordered true is returned

bool GetDiscardThisUpdate ( void ) const

Gets the last calculated result of a call to ShouldDiscard(). If the dervied DataBlock needs to support SetDiscardOlder() call this during ParseMessage() to determine if an update should be discarded due to ordering problems.

int GetForceSendMaximumUpdates ( void ) const

This function returns the value set by SetUpdateDelayMaximum()

Returns: The value.

float GetForceSendTimeDelay ( void ) const

This function returns the value set by SetUpdateDelayMaximum()

Returns: The value.

bool GetOrderedFlag ( void ) const

Gets the ordered flag for a particular data set

Returns: if this data block is meant to be ordered true is returned

bool GetReliableFlag ( void ) const

Gets the reliable flag for a particular data set

Returns: if this data block is meant to be reliable true is returned

float GetUpdateDelayMinimum ( void ) const

This function returns the value set by SetUpdateDelayMinimum()

Returns: The value.

virtual void GiveDeltaHint	(	void *	pdata,
		int	dataLen
	)

virtual

This is a feedback function used by a master ReplicaObject that enables an application to give a delta hint to a DataBlock. The delta should be expressed in units of change per second.

Parameters

pdata	the pointer to the data type to give a hint for
dataLem	the length of the data type

Reimplemented in DataBlock_Predict_Float.

Referenced by DataBlock::GiveDeltaHint().

void GiveDeltaHint ( float delta )

inline

This is a feedback function used by a master ReplicaObject that enables an application to give a delta hint to a DataBlock. This float type call maps to the opaque data type call.

Parameters

This	delta hint is a float type

References DataBlock::GiveDeltaHint().

virtual bool IsAllocated ( void ) const

virtual

This virtual function allows the DataBlock to say how is was allocated.

Returns: Returns true if the DataBlock was allocated using 'new' as a pointer returned.

virtual bool IsAttached ( void * data )

virtual

Given a data pointer this function identifies if this data block is attached to the pointer.

Returns: Returns true if the data pointer is attached to this data block.

Reimplemented in DataBlock_Function, DataBlock_NData, and DataBlock_Predict_Float.

virtual void OwnerChanged ( const int sessionID )

virtual

Called by ReplicaNet to indicate a change in owner. If this virtual method is implemented by a derived class the parent method must also be called.

Reimplemented in DataBlock_Function, and DataBlock_NData.

virtual void ParseMessage ( MessageHelper * message )

virtual

This parses a message for the derived class of this data block. If this virtual method is implemented by a derived class the parent method should be called. Implementation note: The same amount of data added to the message during the Poll() must equal the length of data retrieved during this function. Care must be taken when implementing functionality such as GetDiscardOlder() to preserve the length of data. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

message The current message buffer that contains the packet data

Reimplemented in DataBlock_Function, DataBlock_Predict_Float, and DataBlock_NData.

virtual void Poll	(	DataBlockReason *	reason = `0`,
		const bool	discardOlderIncluded = `false`,
		const unsigned int	discardOrder = `0`
	)

virtual

A poll function that is called by ReplicaNet to check for updates to this particular data block. If this virtual method is implemented by a derived class the parent method should be called before a data packet is created. Processing for this function may occur during the thread context of ReplicaNet so processing time used by this function should be kept to a minimum to avoid performance issues.

Parameters

reason	the reason code that is passed in to this class to enable a response to be calculated
discardOlderIncluded	When true and using SetDiscardOlder() this gives a hint to the DataBlock that the derived class has filled in a valid value for discardOrder. The default value is false and the DataBlock will use a global discard order seqeunce.
discardOrder	When using SetDiscardOlder() and discardOlderIncluded is true this must contain a valid order sequence number for the update. The sequence should be unique for each target sessionID for the update. Since the sequence number is local for each target sessionID the window size for SetDiscardOlder() can be smaller.

Reimplemented in DataBlock_Function, DataBlock_Predict_Float, and DataBlock_NData.

void SetAutomaticUpdatesFlag ( bool automatic = true )

Sets the automatic update flag for a particular data set. By default a DataBlock will calculate the best time to create an update for a particular set of data. If the automatic updates are switched off then the datablock relies on hints from the user to calculate updates.

Parameters

automatic set to true if this data block is meant to be automatically updated. The default is true

void SetBand ( const unsigned int band = 0 )

Sets the band used by the underlying Transport when using the Reliable method to send this DataBlock update. The default value is 0 which is the same band as the internal session messages.

void SetCertainFlag ( bool certain = false )

Sets the certain flag for a particular data set

Parameters

certain set to true if this data block is meant to be certain and the reliable update is set to be false. The default is false

void SetDiscardOlder ( const int windowBits = 0 )

Instead of using the unreliable ordered packet sending type this enables automatic DataBlock checking of older updates. This update method will add extra data for each sequence order numbers for update sent, rather than for each update packet type. If Poll() discardOlderIncluded is false, which is the default option, a global sequence order number will be used for all sessionIDs. So the windowBits must be larger to accomodate larger numbers of players and potential wrap around of the seqeunce. If Poll() discardOlderIncluded is true then the sequence order supplied by the derived dataBlock will be used, this can use a sequence order local to each sessionID. Since the sequence order can be local to each sessionID the windowBits can be smaller. This update method will discard any updates that are older than the currently received update. Implementation note: The derived DataBlock needs to call GetDiscardThisUpdate() to implement this functionality. When ignoring an update during ParseMessage() the size of data from the input packet must be accounted for. The standard ReplicaNet DataBlocks use this where appropriate. While this update method can be enabled for reliable and unreliable ordered packet update types it is not optimal to do so because all packet updates are already ordered by the network layer.

Parameters

windowBits The number of bits to use for the order checking window. The larger the number of bits the more accurate the order checking is. A good value is to use 16 bits for small scale games of 32 players and >=24 bits for MMO games. The default value is 0 and disables this mechanism. The minimum emabled value for this mechanism is 8 bits.

void SetForceReflectionUpdate ( const bool enable = false )

If the DataBlock is attached to a reflection ReplicaObject this allows any received replica update to be forced into the outgoing DataBlock updates. /param enable The default value is false meaning the DataBlock will calculate its own delta updates.

void SetForceSendMaximumUpdates ( const int updates = 0 )

This sets the maximum number of consecutive force updates that can be sent from this DataBlock to each ReplicaObject. Forced updates are sent for this DataBlock to a ReplicaObject if the time since the last update, either due to the update filter policy or due to a forced update, is greater than the time set by SetForceSendTimeDelay(). Usually the best possible approximation of the DataBlock change calculated at the time is used. If a normal DataBlock update is sent, in other words an update falls within the DataBlock update filter policy, then the trigger for forced updates is set allowing consecutive forced updates to be started. This feature is useful for unreliable updates where DataBlocks that do not change often usually causing fewer DataBlock updates can be refreshed or force updated. It is a good idea, but not required, to set SetForceSendTimeDelay() before setting this value to be anything greater than 0 because the default value of 0.0f for SetForceSendTimeDelay() could cause many quick consecutive updates to be sent. This can be changed by the user at any time. The default value is 0 which disables this mechanism. The actual mechanism is implemented by the derived DataBlock. For user extended DataBlocks this mechanism can be ignored if the DataBlock filter policy method does not require this functionality.

void SetForceSendTimeDelay ( const float delay = 0.0f )

This sets a time delay from the previous DataBlock update to a ReplicaObject before another forced send update is required. Setting this to be 0.2f causes a forced send update to be sent if the time since the last DataBlock update is more than 0.2f seconds. Therefore if SetForceSendTimeDelay(0.3f) and SetForceSendMaximumUpdates(3) is used, then a DataBlock that stops changing will get 3 extra updates with a delay of 0.3f of a second between each update. This setting for forced updates overrides the SetUpdateDelayMaximum() setting. This can be changed by the user at any time. The default value is 0.0f which then causes delays to be sent every internal ReplicaNet poll as required by SetMaximumForceSendUpdates() The actual mechanism is implemented by the derived DataBlock. For user extended DataBlocks this mechanism can be ignored if the DataBlock filter policy method does not require this functionality.

void SetID ( int id )

protected

This sets the ID of the data block when it is used in a ReplicaObject. This function is called from ReplicaObject::RegisterDataBlock()

void SetIsAllocated ( const bool isAllocated = true )

Defines how the DataBlock was allocated.

Parameters

isAllocated Set this to be true if the DataBlock was allocated by using 'new' and a pointer returned. True is the default value.

void SetOrderedFlag ( bool ordered = false )

Sets the unreliable ordered flag for a particular data set

Parameters

certain set to true if this data block is meant to be using the unreliable ordered packet sending method, the certain and reliable flags are set to be false. The default is false

void SetReflectionMasterUpdate ( const bool enable = false )

If the DataBlock is attached to a reflection ReplicaObject this allows any received replica update to be applied to the reflection master, improving the accuracy of outgoing reflection updates. The replica poll stage will be ignored since the reflection master poll has already updated the value. /param enable The default value is false meaning the DataBlock will calculate its own updates during the normal replica poll.

void SetReliableFlag ( bool reliable = false )

Sets the reliable flag for a particular data set

Parameters

reliable set to true if this data block is meant to be reliable and the certain update is set to be false. The default is false

void SetUpdateDelayMinimum ( const float delay = 0.0f )

This sets the minimum possible delay between each update, due to a DataBlock filter condition being met, for this datablock to each ReplicaObject. This allows the bandwidth for this DataBlock to be fine tuned. A value of 1.0f will mean a maximum of 1 update per second to each ReplicaObject. A value of 0.2f will mean a maximum possible 5 updates due to filter conditions per second, one every 0.2 seconds, to each ReplicaObject. This setting is separate from SetForceSendTimeDelay() This can be changed by the user at any time. The default value is 0.0f which disables this mechanism. The actual mechanism is implemented by the derived DataBlock. For user extended DataBlocks this mechanism can be ignored if the DataBlock filter policy method does not require this functionality.

Parameters

delay The minimum delay in seconds.

void SetVariableName ( const char * name = 0 )

Sets the name of the variable attached to this DataBlock which is then used to output extended debugging information using the registered DebugHandler if available. The default value for the variable name is null. This function is used by ReplicaNet and the standard DataBlocks added to objects using the ROL Language if the preprocessor define REPLICANET_VISUALDEBUGGER is used. For user allocated DataBlocks this function can be used to set extra debugging information, such as the variable name, useful to the author. Each DataBlock implementation can choose to not output debug information if there is no name set. The standard DataBlocks included with ReplicaNet output the DataBlock class name with a unique hex number identifier prefixed with "<Unknown>" if the variable name is null.

Parameters

name	The name of the variable.

bool ShouldDiscard ( MessageHelper * message )

Called by ReplicaNet to check incoming packets for any discard older sequence when parsing incoming data packets.
