#include <CodeServer.h>

Inheritance diagram for CodeServer:

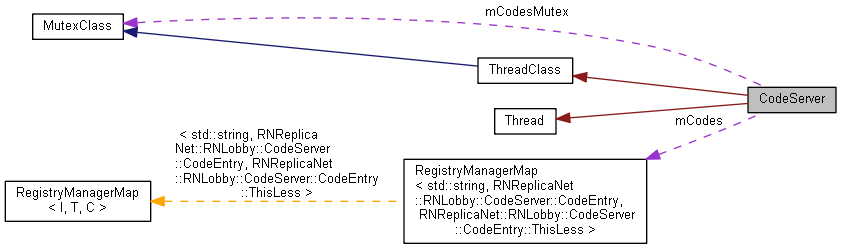

Collaboration diagram for CodeServer:

[legend]

Classes
class	CodeEntry

Public Types
enum	Reply { kReply_ValidKey = 0, kReply_UnspecifiedError, kReply_InvalidKey, kReply_KeyInUse, kReply_Timeout, kReply_CorruptReply }

enum	{ kDefaultPort = 4003 }

Public Member Functions
bool	ReadCodeFile (const char *filename, const bool duplicateCodeCheck=false)

bool	AddCode (const char *code, const bool duplicateCodeCheck=false, const int userSuppliedReply=0)

bool	RemoveCode (const char *code=0)

bool	Start (const XPAddress &address=XPAddress(kDefaultPort))

bool	Stop (bool hardware=false)

void	SetEncryptionKey (const void *data, const int length)

void	SetCodeTimeout (const float time=(60.0f *30.0f))

float	GetCodeTimeout (void) const

virtual void	CallbackDataReceived (void *data, int &length, const int maxLength, XPAddress &address)

virtual void	CallbackVersion (const int version)

virtual void	CallbackKeyData (char *keyData, const int maxLength, int &nOnce1, int &nOnce2, bool &updateDatabase)

virtual void	CallbackQueryReply (Reply &reply, int &userSuppliedReply, int &nOnce1, int &nOnce2)

virtual void	CallbackDataSend (void *data, int &length, const int maxLength, XPAddress &address)

virtual void	CallbackQueryReplyTime (const float seconds)

int	GetNumRequests (void) const
	Returns the total number of codes queries.

int	GetNumFailed (void) const
	Returns the total number of codes queries that were returned as kReply_InvalidKey.

Protected Attributes
RegistryManagerMap < std::string, CodeEntry, CodeEntry::ThisLess >	mCodes

MutexClass	mCodesMutex

Detailed Description

This code server uses a UDP socket to respond to queries for the validity of codes. The codes are stored in a file with one code per line. Use the RNLobby::CodeClient class to make queries to this server.

Member Function Documentation

bool AddCode	(	const char *	code,
		const bool	duplicateCodeCheck = `false`,
		const int	userSuppliedReply = `0`
	)

Adds a code to the database in memory. Each code must be no longer than 255 characters. This function may be used when the code server has been started.

Parameters

code	The code to add.
duplicateCodeCheck	If this is true then the code is checked to make sure it is not a duplicate code already stored in the database. The default is false, which disables the duplicate code check and makes adding codes slightly faster.
userSuppliedReply	This is returned from CodeClient::GetUserSuppliedReply(). This is useful if the key server wishes to communicate that the key has billing problems, been suspended etc. To update userReply for an existing key you may enable duplicateCodeCheck or use RemoveCode() and AddCode().

Returns: Success returns true, failure returns false.

virtual void CallbackDataReceived	(	void *	data,
		int &	length,
		const int	maxLength,
		XPAddress &	address
	)

inlinevirtual

This callback may be used to alter data after it has been received and before the data is processed.

Parameters

data	The pointer to the data.
length	The length of the data. If the output length changes then this variable can be used to pass the value back by reference. A returned length of zero discards the packet.
maxLength	The maximum length of the data buffer. Parameter length must not be greater than this value.
address	The network address for this data packet. The contents of the address may be changed if required.

virtual void CallbackDataSend	(	void *	data,
		int &	length,
		const int	maxLength,
		XPAddress &	address
	)

inlinevirtual

This callback may be used to alter any data in a reply, just before it gets sent.

Parameters

data	The pointer to the data.
length	The length of the data. If the output length changes then this variable can be used to pass the value back by reference. A returned length of zero discards the packet.
maxLength	The maximum length of the data buffer. Parameter length must not be greater than this value.
address	The network address for this data packet. The contents of the address may be changed if required.

virtual void CallbackKeyData	(	char *	keyData,
		const int	maxLength,
		int &	nOnce1,
		int &	nOnce2,
		bool &	updateDatabase
	)

inlinevirtual

This callback may be used to alter the actual key queried before it is matched with the database.

Parameters

keyData	The pointer to a null terminated char string.
maxLength	The maximum length of the data buffer, including the null termination character.
nOnce1	The first nonce.
nOnce2	The second nonce.
updateDatabase	This defaults to true, meaning that the query will update the database with the results of the search. If this is changed to be false the query will only be read only. A read only query does not require correct nonce values to be able to return kReply_ValidKey.

virtual void CallbackQueryReply	(	Reply &	reply,
		int &	userSuppliedReply,
		int &	nOnce1,
		int &	nOnce2
	)

inlinevirtual

This callback may be used to alter the CodeServer::Reply.

Parameters

reply	The reply from the key query.
userSuppliedReply	The user supplied reply.
nOnce1	The first reply nonce.
nOnce2	The second reply nonce.

virtual void CallbackQueryReplyTime ( const float seconds )

inlinevirtual

This callback reports how long an query and reply took starting from when packet data was received until the packet data is sent.

Parameters

seconds The time in seconds.

virtual void CallbackVersion ( const int version )

inlinevirtual

This callback may be used to ascertain the version of the request made.

Parameters

version The version of the request.

float GetCodeTimeout ( void ) const

Gets the value configured by SetCodeTimeout()

Returns: The value configured by SetCodeTimeout()

bool ReadCodeFile	(	const char *	filename,
		const bool	duplicateCodeCheck = `false`
	)

Reads codes from a file and stores the codes in a database in memory. Each code must be in a separate line. This function may be used when the code server has been started. Each call to this function will add codes to the database held in memory. Each code must be no longer than 255 characters.

Parameters

filename	The filename to read.
duplicateCodeCheck	If this is true then each code is checked to make sure it is not a duplicate code already stored in the database. The default is false, which disables the duplicate code check and makes adding codes slightly faster.

Returns: Success returns true, failure returns false.

bool RemoveCode ( const char * code = 0 )

Removes codes from the database in memory. This function may be used when the code server has been started.

Parameters

code	If the code is supplied the code is removed from the database in memory. If there is no code supplied then all codes are removed from the database in memory.

Returns: Success returns true, failure returns false.

void SetCodeTimeout ( const float time = (60.0f *30.0f) )

This sets the time period that a code will be flagged as being used and kReply_KeyInUse will be returned from CodeClient::GetReply(). After this time period has elapsed a request to validate the same code will be allowed.

Parameters

time	The time in seconds. The default value is (60.0f * 30.0f) which is 30 minutes.

void SetEncryptionKey	(	const void *	data,
		const int	length
	)

Sets the encryption key to be used by all queries for this server. The same key must be used with any RNLobby::CodeClient querying this server. The default encryption key is the same for RNLobby::CodeServer and RNLobby::CodeClient.

Parameters

data	The data to use as a seed for the key. This can be NULL to use the default key.
length	The length of the data to use for creating the key.

bool Start ( const XPAddress & address = XPAddress(kDefaultPort) )

Starts the code server thread and processes code queries. If not already started the network hardware is started.

Returns: Success returns true, failure returns false.

bool Stop ( bool hardware = false )

Stops the code server thread and stops processing code queries.

Parameters

hardware If true this stops the network hardware. The default is false.

Returns: Success returns true, failure returns false.
